- System: 20mm cavity batten over 8mm IBIS over 70mm wall battens at 600mm centres over 36mm Metrapanel wall system.
- Insulation: Premier A grade glasswool (R1.8).
- Coverings: Autex composition full height.
Nine twin T5 fluorescent lights, 1500mm.
- High Wall
- Cooling: 9.5kW
- Heating: 10.3kW

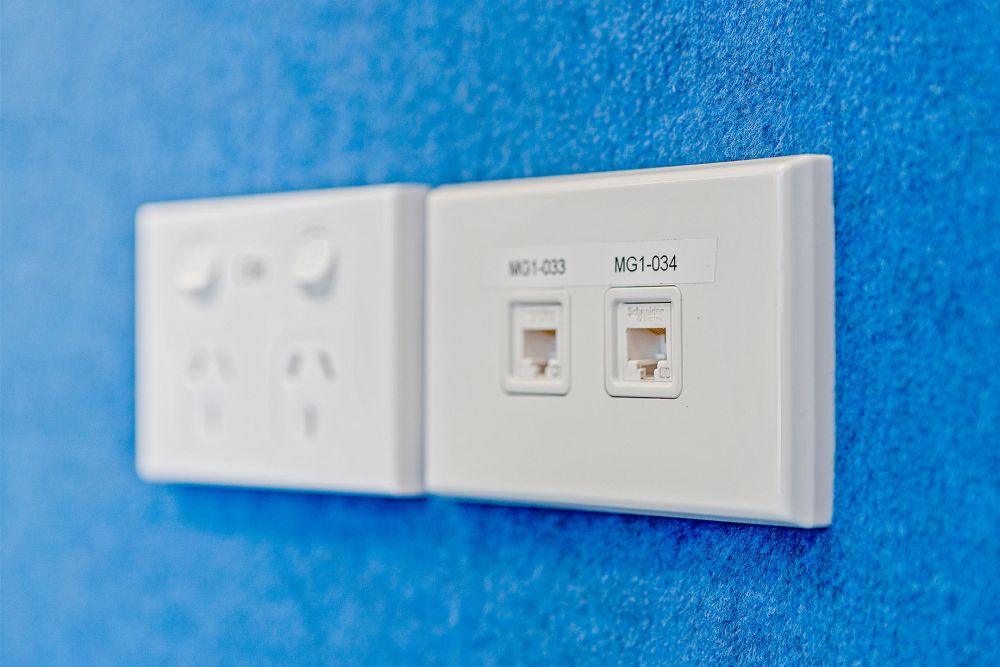

Six double data outlets.
Fire Safety Features

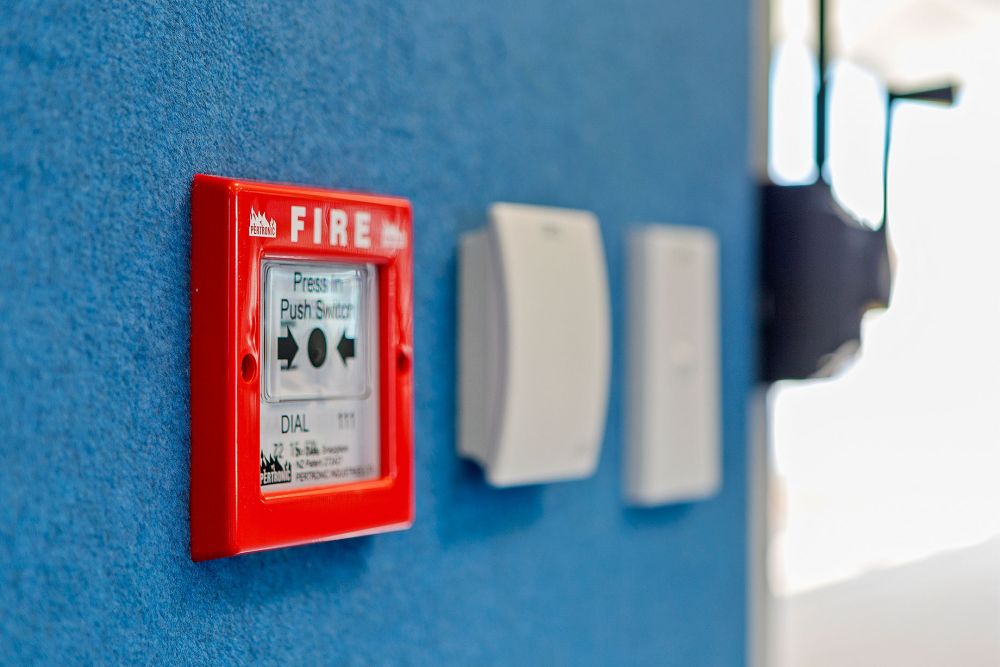

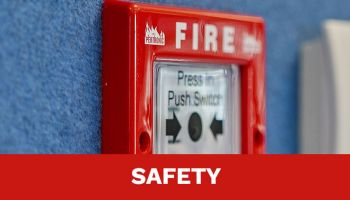

Carbon dioxide gas (CO2) sensor and fire alarm by exit.
2.4m x 1.2m whiteboard with pen rail.
- Double glazed powder coated aluminium windows and doors as per the drawings. Clear float glass to all joinery.
- Exterior doors with arrow door closers fitted.
- Manual window winders.
Fully MoE Compliant

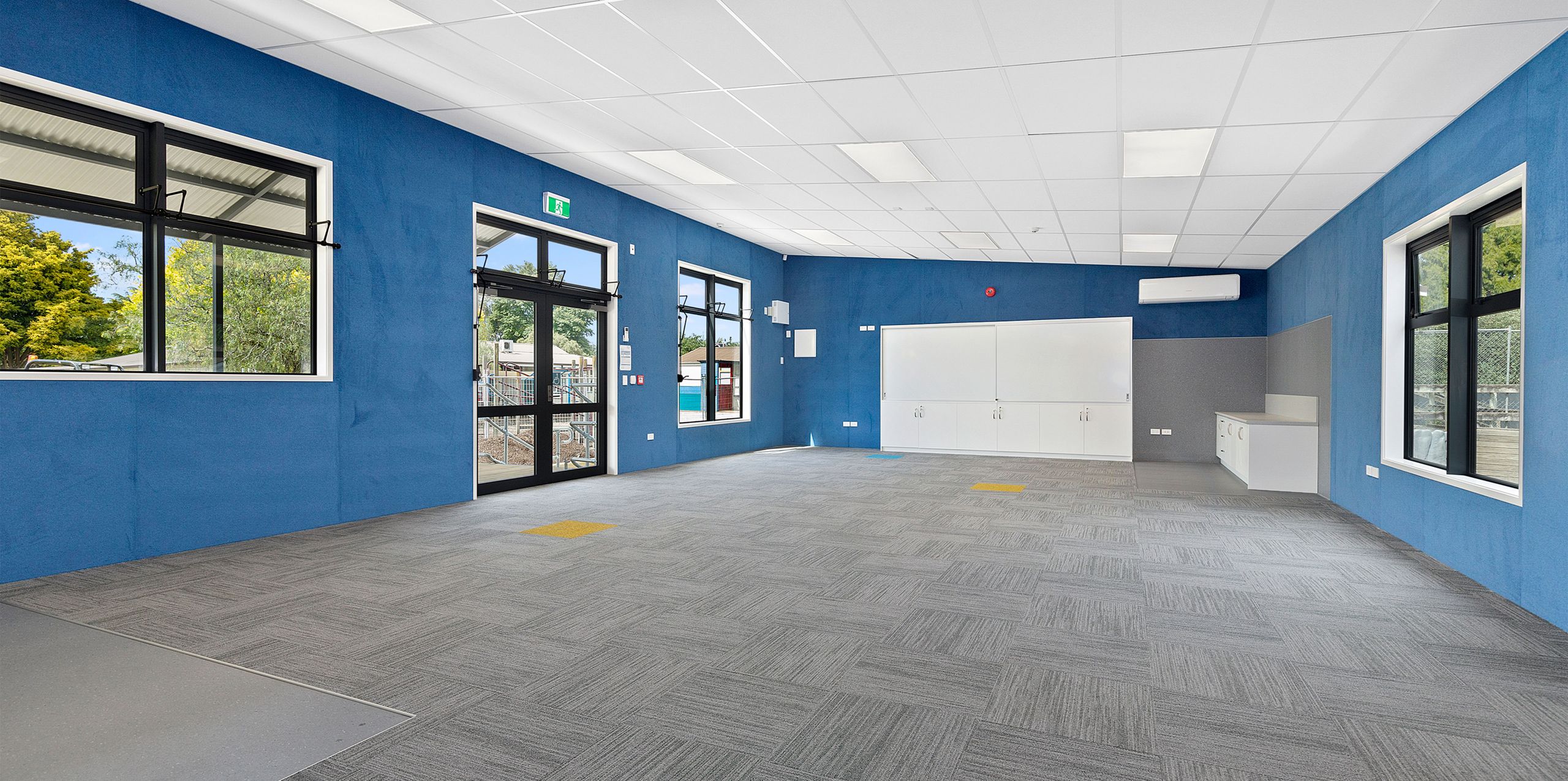

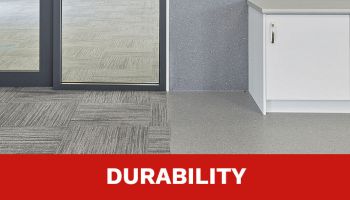

Builtsmart classrooms are constructed to the latest NZ Ministry of Education specifications to be safe, durable and compliant with very minimal ongoing maintenance costs in mind.
Every unit is pre-installed with CO2 sensor, fire alarm and safe window catches to ensure safety requirements are met.

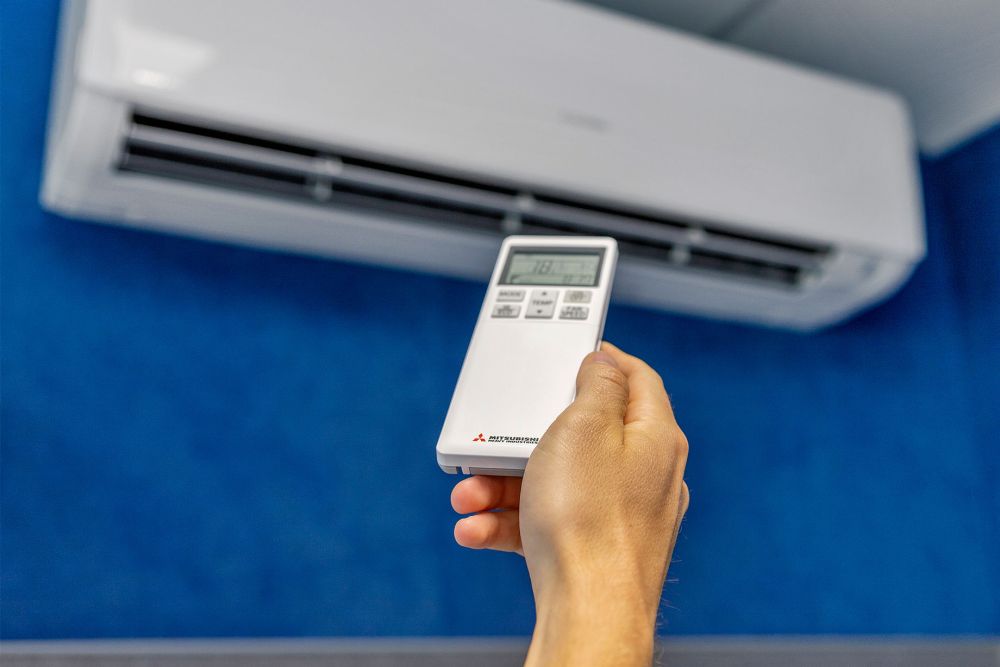

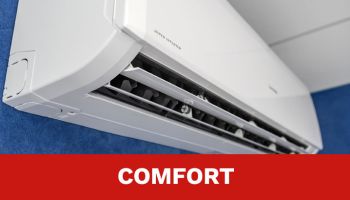

The heat pump and carpet tiles keep occupants warm and dry in winter and cool, comfortable in summer while noise levels are managed by high ceilings designed with panel inserts.

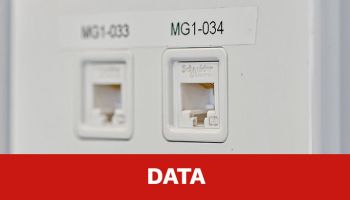

Wi-fi, data, call bell and intercom are all included to complete well-thought-out learning spaces your school will be proud of.
PurposeGeneral Learning Area
70 sqm (single to lease)6.2m x 11.4m
83 sqm (single to purchase)7.2m x 11.4m
140 sqm (double to lease)6.2m x 23.0m
166 sqm (double to purchase)7.2m x 23.0m

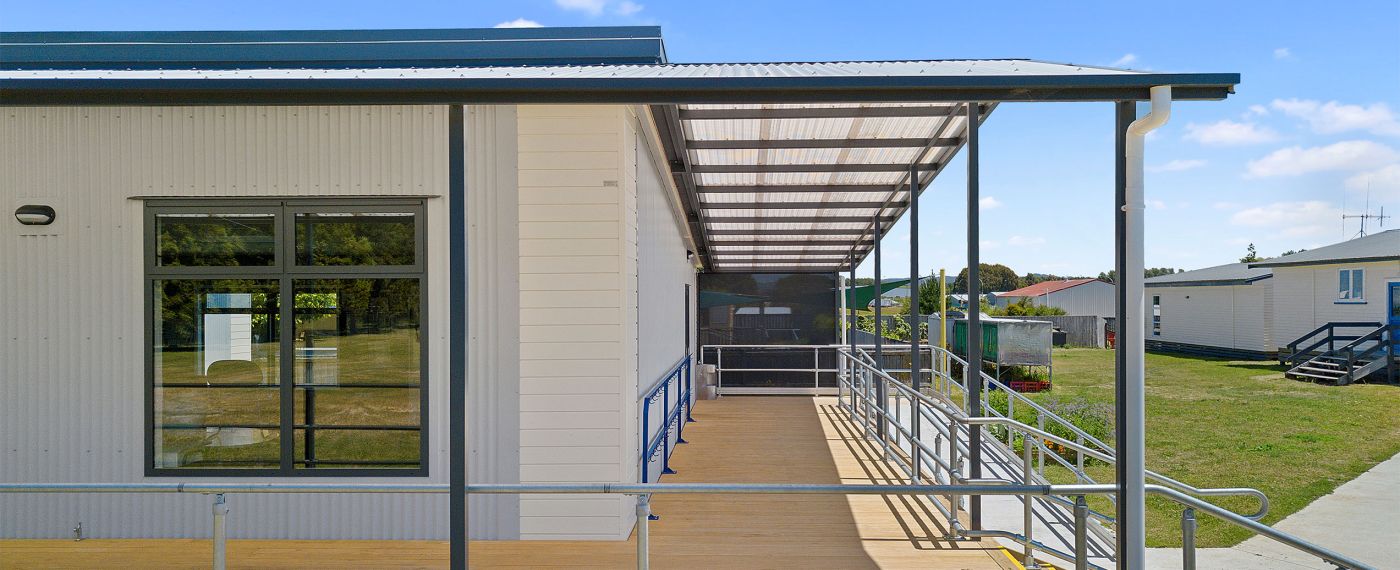

Decks, steps, ramps and covered walkways

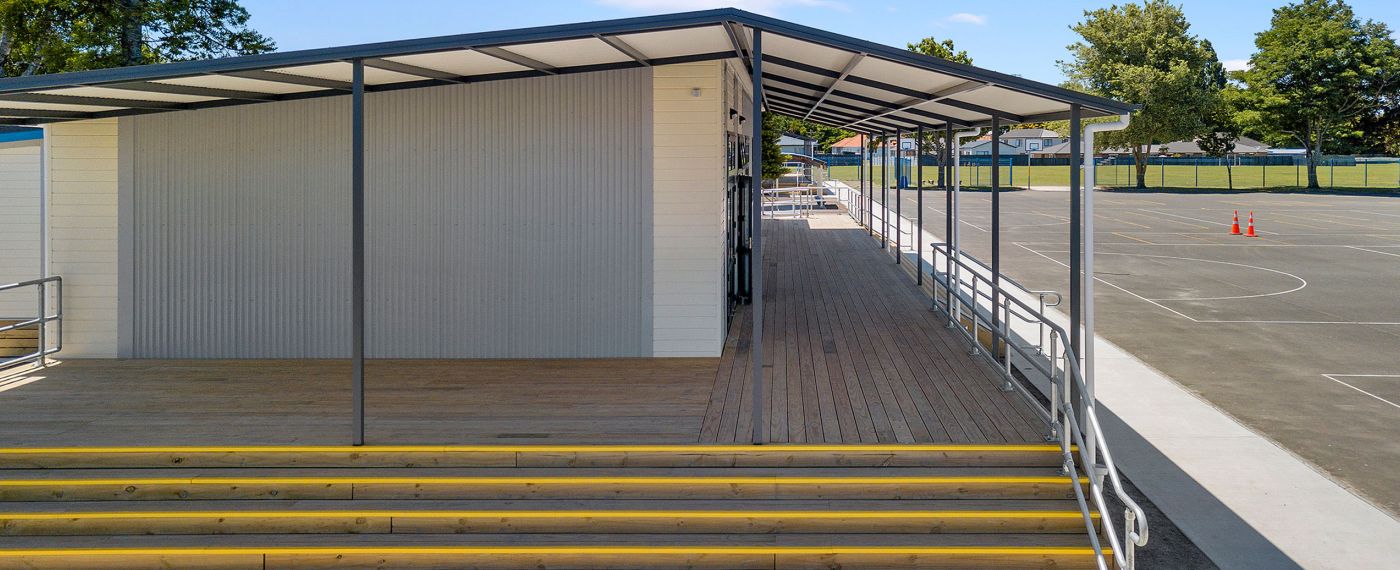

Builtsmart install pergola canopies to the full length and width of the decks. Canopies are constructed from Aluminium powder coated frames and Colorsteel roofing.

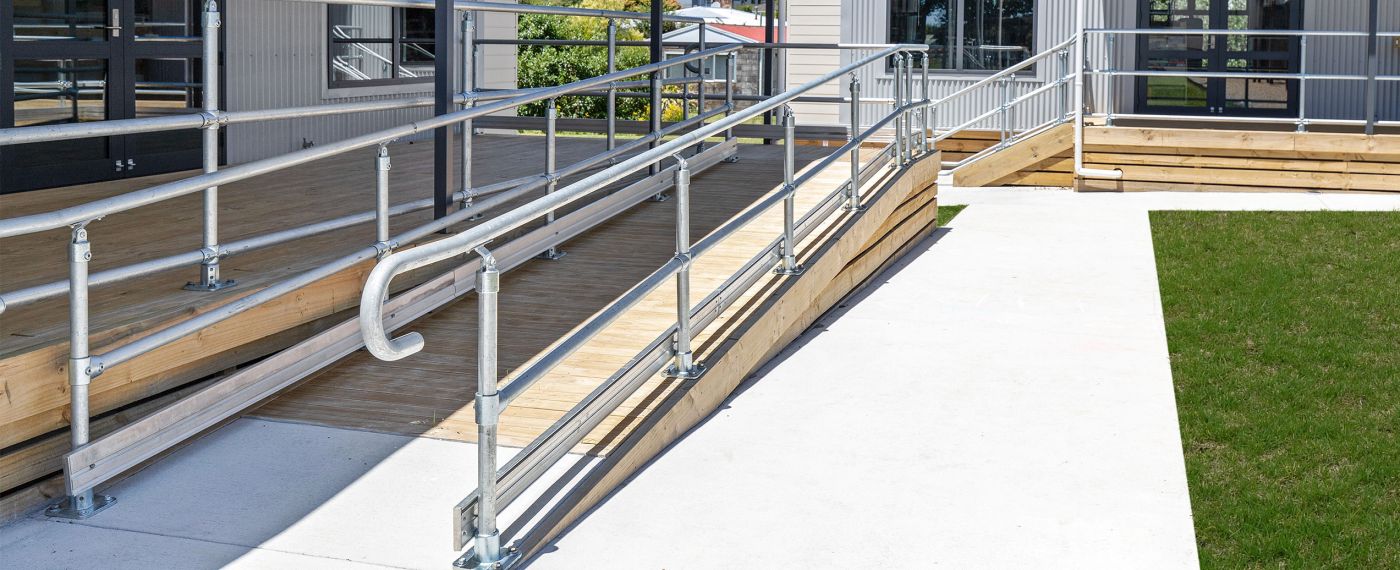

Accessibility ramps are designed to meet the Ministry of Education Standard of a 1:14 gradient. Finished with 140x40 grip tread pine and installed with Moddex handrails and Eco Glo strips meeting requirements of the New Zealand Building Code.
Builtsmart decks are designed to meet the Ministry of Educations standards of 4kpa, founded on 125x125 H5 timber piles cast in concrete to form a minimum deck height of 500mm from ground level. All our classroom decks are finished with 140x40 grip tread pine with Moddex handrails installed to comply with industry standards.
